Home > Products > Construction Hardware > Rebar coupler > Straight Screw Sleeve Reducer Rebar Coupler

Straight Screw Sleeve Reducer Rebar Coupler

Basic Info

Model No.:  BS-GLTM18

Product Description

Model NO.: BS-GLTM18 Certification: SGS, CE, Iaf,ISO Technics: Forged Type: Fasteners Outer Diameter: 27mm Qty/Bag: 200PCS Thread Angle: 75° Sample: Available Trademark: BEISHUO Origin: China Application: Construction Structural Surface Treatment: No Material: Steel Size: M18 Length: 45mm Thread Pitch: 2.5mm Surface: Plain & Knurling Weight: 125g Specification: M18 HS Code: 73079200 Product Specification:
*The size in the table is normal ones we produce. Customized is also available.
*Grade 1, the accuracy of thread is 6G.
*Uniaxial tension,reversed tension and compression are all according to JGJ107-2010.Standard type
  Outer Diameter(mm) ±1.0 Length (mm) ±1.0 Net Weight (kg) Thread Pitch Thread Angle
M16*2.5 Φ24.0 L40 0.094 2.5 75°
M18*2.5 Φ27.0 L45 0.1286 2.5 75°
M20*2.5 Φ31.0 L50 0.1938 2.5 75°
M22*2.5 Φ33.0 L55 0.2296 2.5 75°
M25*3 Φ37.0 L60 0.3106 3 75°
M28*3 Φ41.0 L68 0.4024 3 75°
M32*3 Φ47.0 L75 0.5979 3

75°

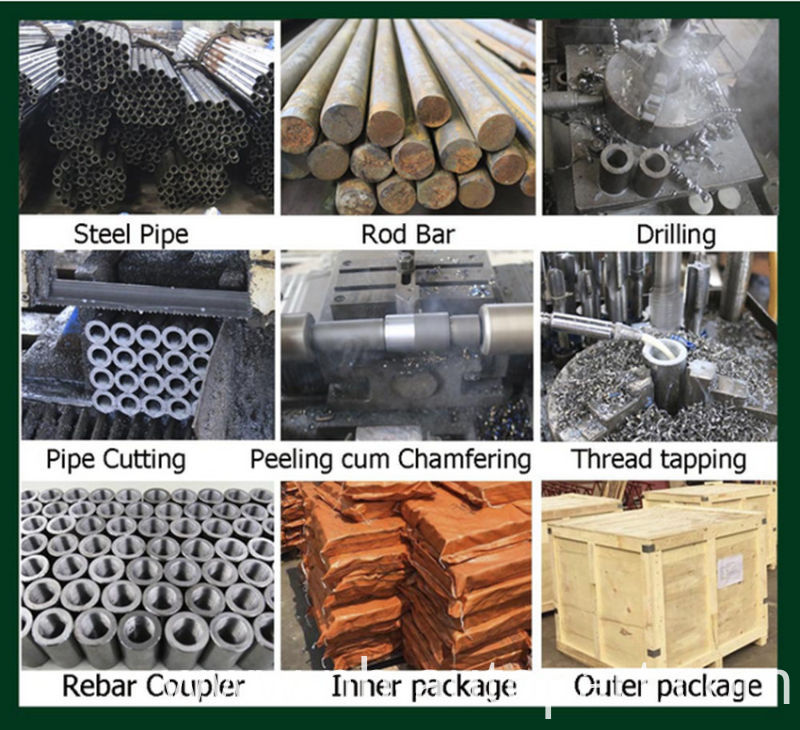

Production Flow:
Straight Screw Sleeve Reducer Rebar Coupler

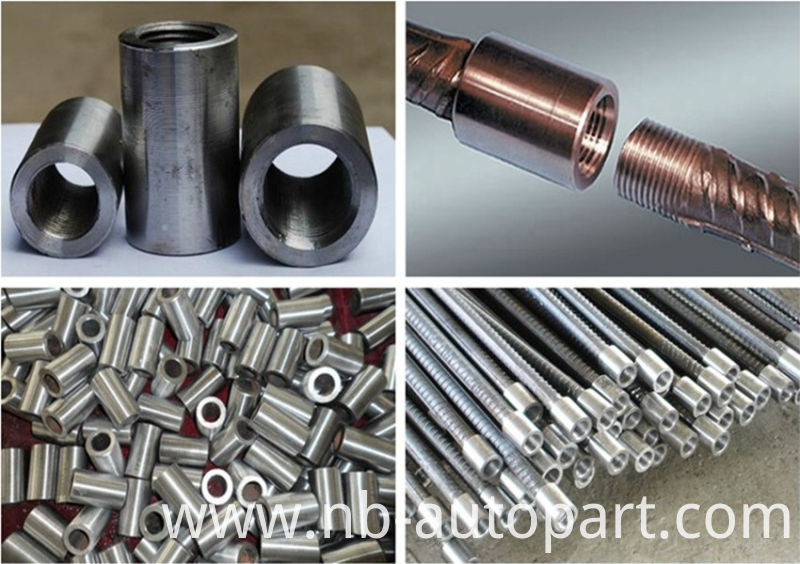

Application:
Straight Screw Sleeve Reducer Rebar CouplerStraight Screw Sleeve Reducer Rebar Coupler

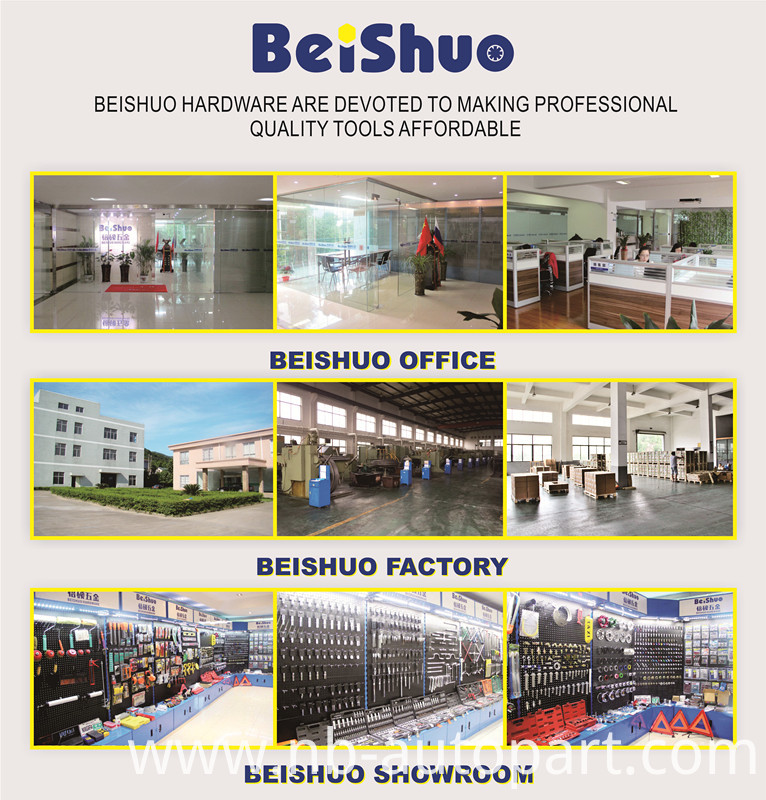

Company Information:
Yuyao BeiShuo Hardware Co., Ltd. is specialized in wheel lug nuts, wheel lug bolts, wheel locks, wheel adapter, wheel spacer, hub centre ring, Socket Spanner, pressing and plastic products. Our products are in complete range of articles , and offered at reasonable price.

BEISHUO adheres to quality first, stresses on quality management, and adhere to people oriented policy and continued innovation. BEISHUO strictly carries out ISO9001: 2000 quality management standard and keeps developing new products to satisfy market demands. The products are exported to Europe, US, Middle East and other countries and regions, and deeply favored by domestic and foreign clients.

We Operate under the principle of "Better quality, Better price and Better cooperation". BEISHUO wholeheartedly welcome honored guests both at home and board to business negotiation.
Straight Screw Sleeve Reducer Rebar Coupler

Detail Contacts:
Straight Screw Sleeve Reducer Rebar Coupler

Contact us if you need more details on Coupler. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Steel Bar Connector、Splicing Coupler. If these products fail to match your need, please contact us and we would like to provide relevant information.
